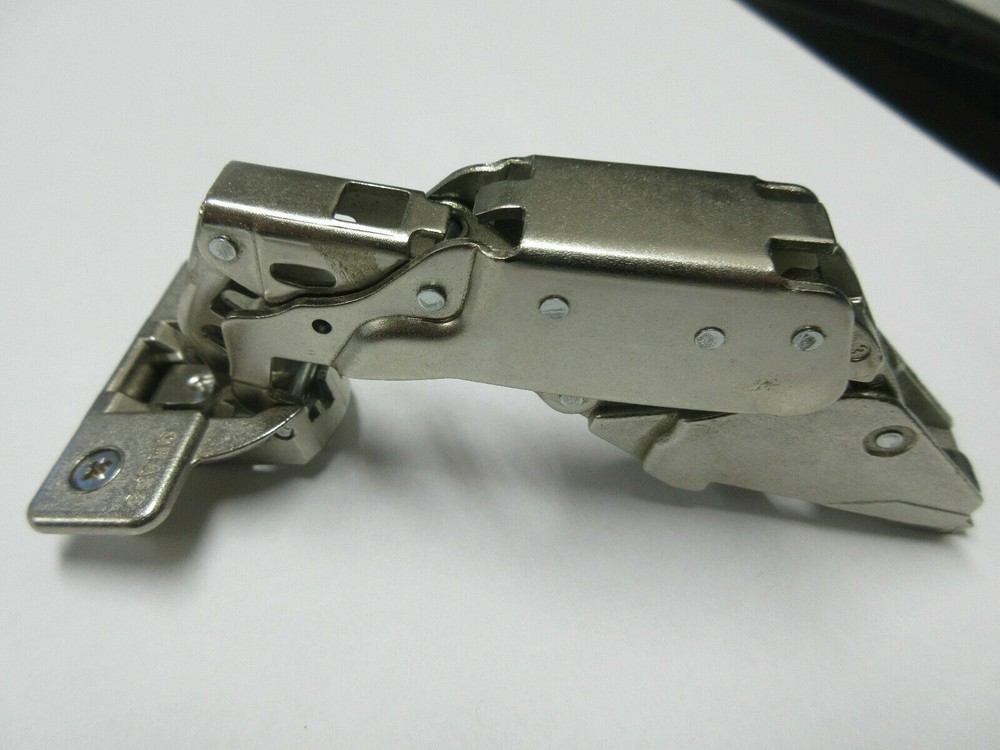

Grass 170 Degree Nexis Impresso Hinge, Self-Close, Half Overlay
Grass 170 Degree Nexis Impresso Hinge, Self-Close, Half Overlay
USD 8.20 USD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Features | Self Closing |
| Material | Steel |
| Finish | Nickel Plated |
| Brand | GRASS |
| Color | Silver |
| Type | Half Overlay |
Grass 170 Degree Nexis Impresso Hinge, Self-Close, Half Overlay, Dowel Brand new Questions?? Just ask!! Degree of Opening-170 Overlay-Partial/Twin Overlay Closing Type-Self-closing (Snap-closing) Cup Mount-Press-in Dowels Boring Pattern-42mm Mfg Model-Nexis Impresso Application-Standard Configuration-Hinge and Plate sold separately Arm Style-Half-crank Cup Diameter-35mm Cup Depth-11mm Max Overlay-13mm Max Door Thickness-26mm (1") Cup Mount Mnf-Dowel Overlay Mfg Definition-Half Commonly used in corner or "lazy susan" applications along with a pie cut hinge Zero protrusion when opened at 90 degree(s) C-12
